Double Color Sheet Roof Forming Machine
Double Color Sheet Roof Forming Machine
Double Color Sheet Roof Forming Machine
Double Color Sheet Roof Forming Machine
Double Color Sheet Roof Forming Machine

Double Color Sheet Roof Forming Machine

Unit Price: USD 28500 - 6500 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-003

Additional Info

    Packaging: One 40GP

    Productivity: 12m/min

    Brand: Zhongtuo

    Place of Origin: Hebei

    Supply Ability: 30sets/month

    Certificate: CE/ISO9001

Product Description

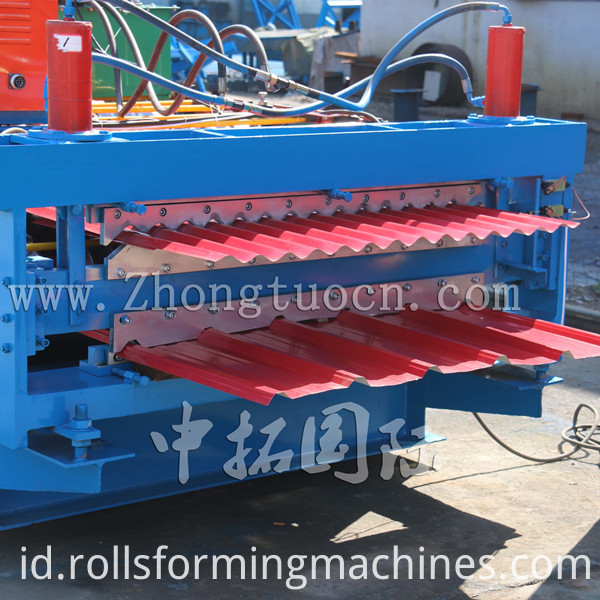

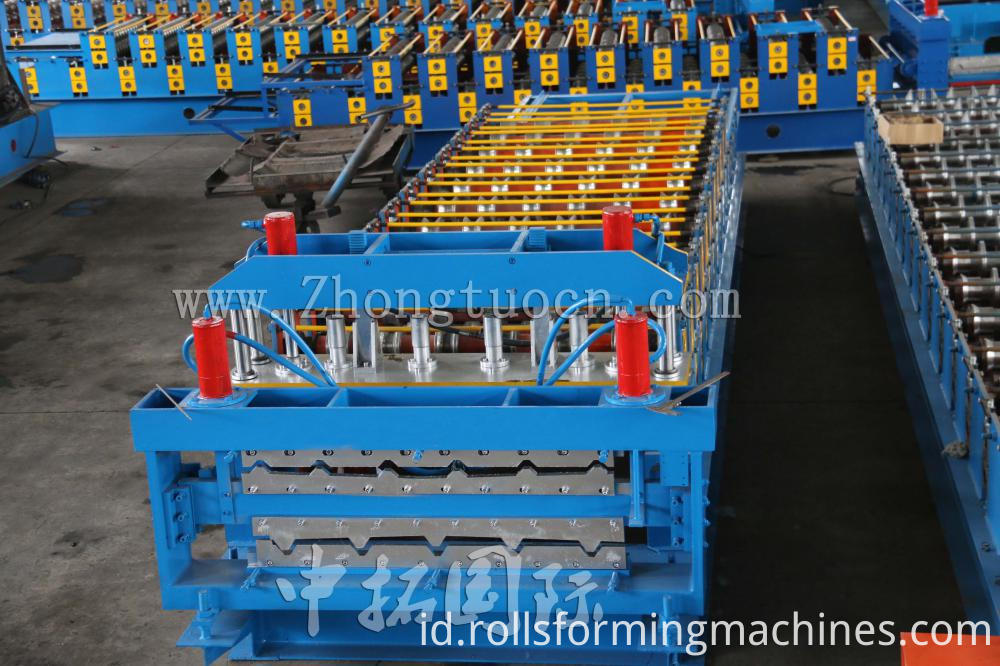

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

No.

Main parameter

1

Length of the main part

About8500х1650х1500mm

2

Weight of main part

About 5.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

Chain

8

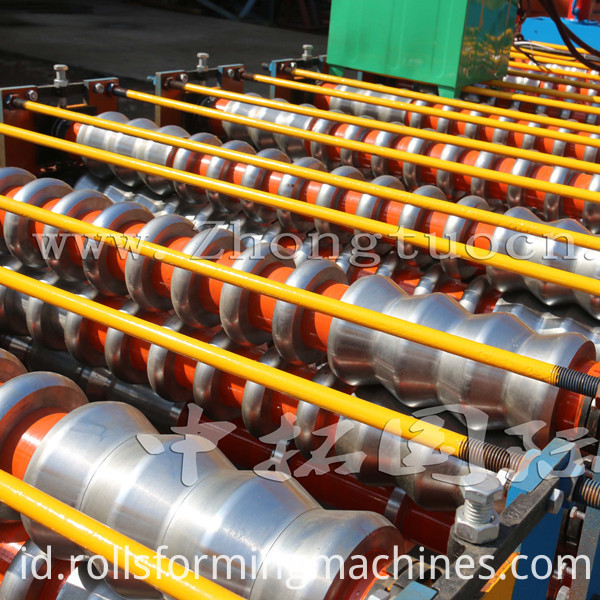

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

14

Main power

5.5kw

Double Layer Roll Forming machine (3)


Production process

Double Layer Machine For Color Steel Profile

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving



Components of production line

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 0.7mm

Material width:1220mm

Forming speed: 12m/min


Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic


Double Layer Roll Forming machine (5)

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

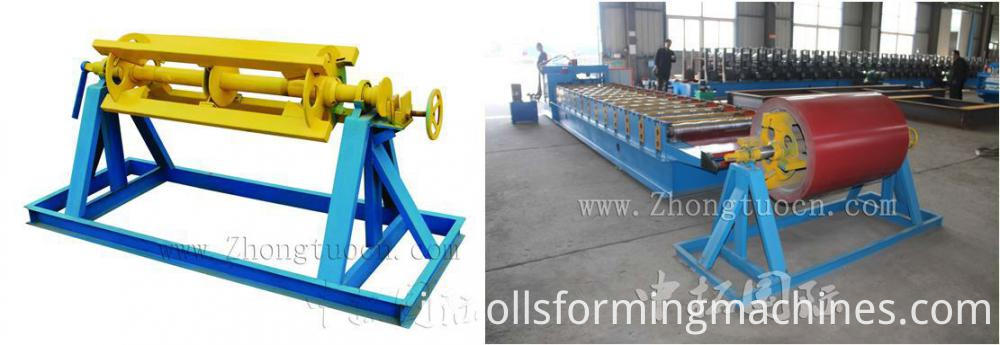

Un-coiler System

Double layer roll forming machine

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1220mm

450-550mm

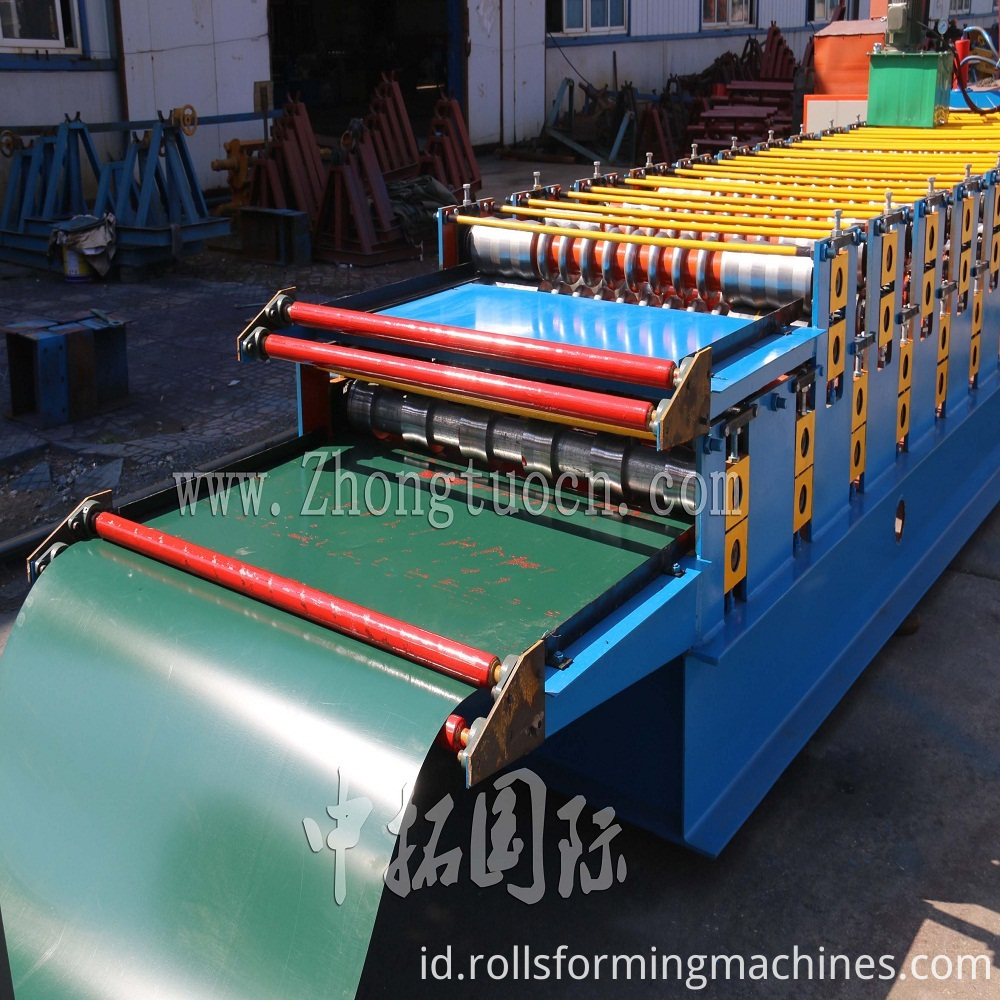

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.


Double Layer Roll Forming machine (8)


Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan

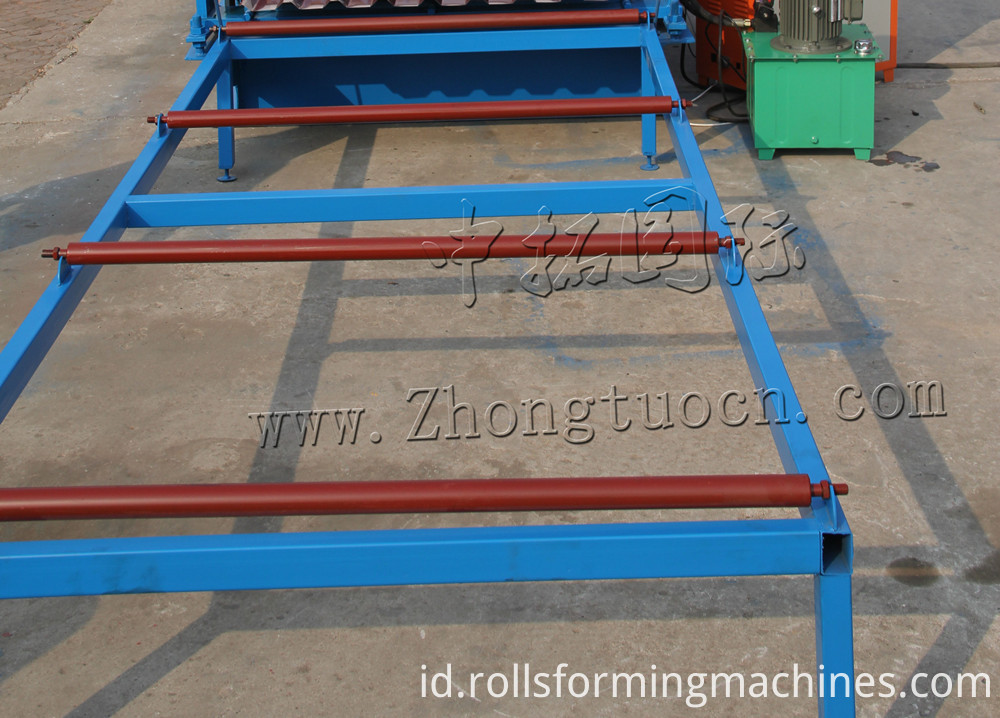

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

Double Layer Roll Forming machine (21)



Machine Description

Qty

Delivery time

Container Type

Price

(FOB TIANJIN)

Double layers Roll Forming Machine

1 SET

45 working days

after receiving deposit

One 40GP

USD 13400


Looking for ideal Roof Sheeting Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Layer Rolling Line are quality guaranteed. We are China Origin Factory of Roof Panel Roll Making Machine. If you have any question, please feel free to contact us.
