Zhongtuo Roll Forming Machinery Co., ltd

Metal Galvanized Panel Floor Deck Roll Forming Machine
Metal Galvanized Panel Floor Deck Roll Forming Machine
Metal Galvanized Panel Floor Deck Roll Forming Machine
Metal Galvanized Panel Floor Deck Roll Forming Machine
Metal Galvanized Panel Floor Deck Roll Forming Machine

Metal Galvanized Panel Floor Deck Roll Forming Machine

Unit Price: USD 29000 - 39000 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-003-150

Additional Info

    Packaging: nude packing

    Productivity: 25 m/min

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 20sets/month

    Certificate: CE ISO9001

Product Description

Metal Galvanized Panel Floor Deck


Roll Forming Machine


Product Description

Metal Floor Deck Machine Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving


Suitable Material Type:GI/PPGI/AL

Thickness:0.80-1.20mm

Length Tolerance:±2mm/6m

Working Speed:25 m/min Standard machine

Total Power:15KW

Total Weight: About 14T Up to final design

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Decoiler

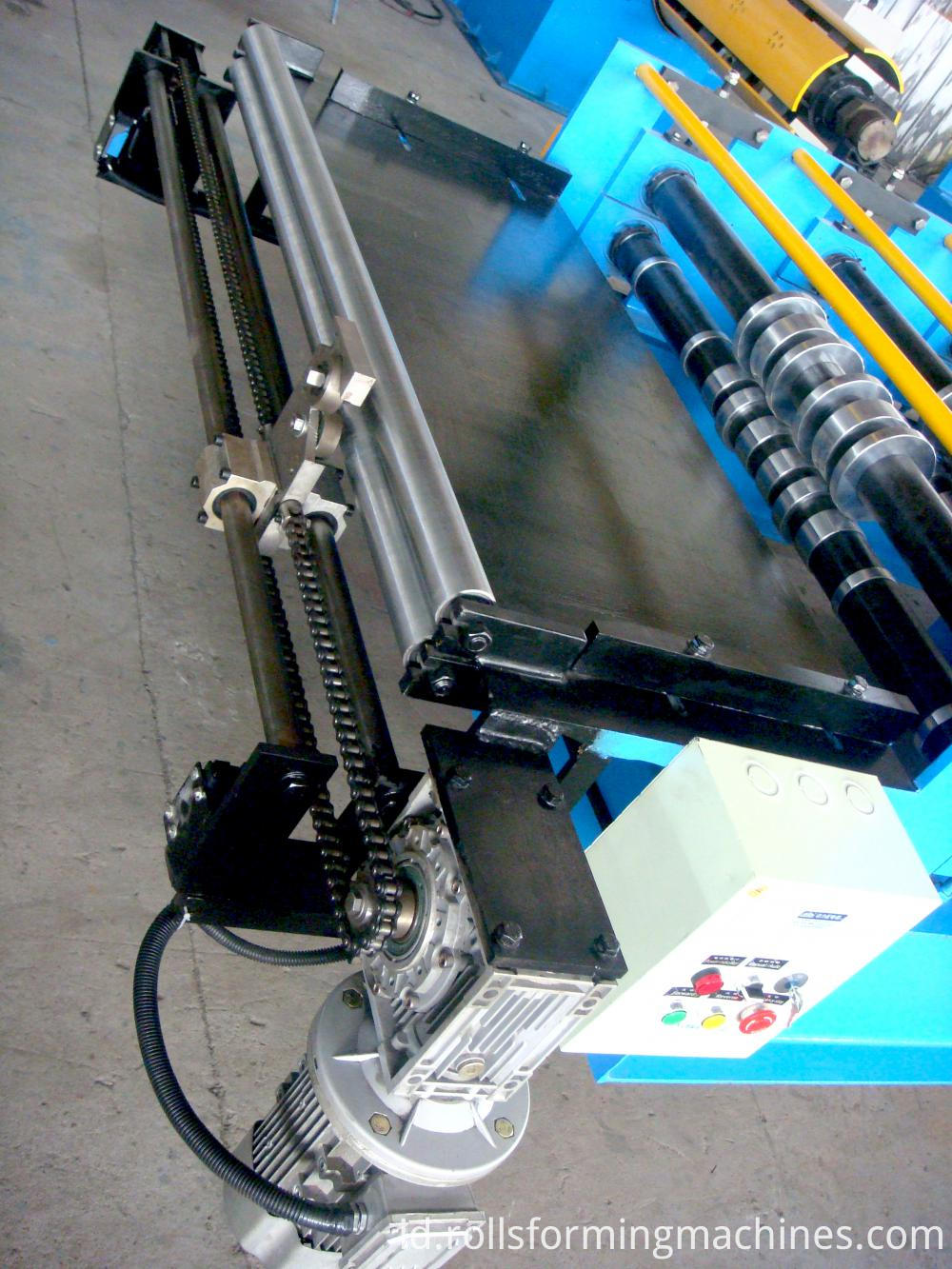

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of lo

cate angle iron.


feeding

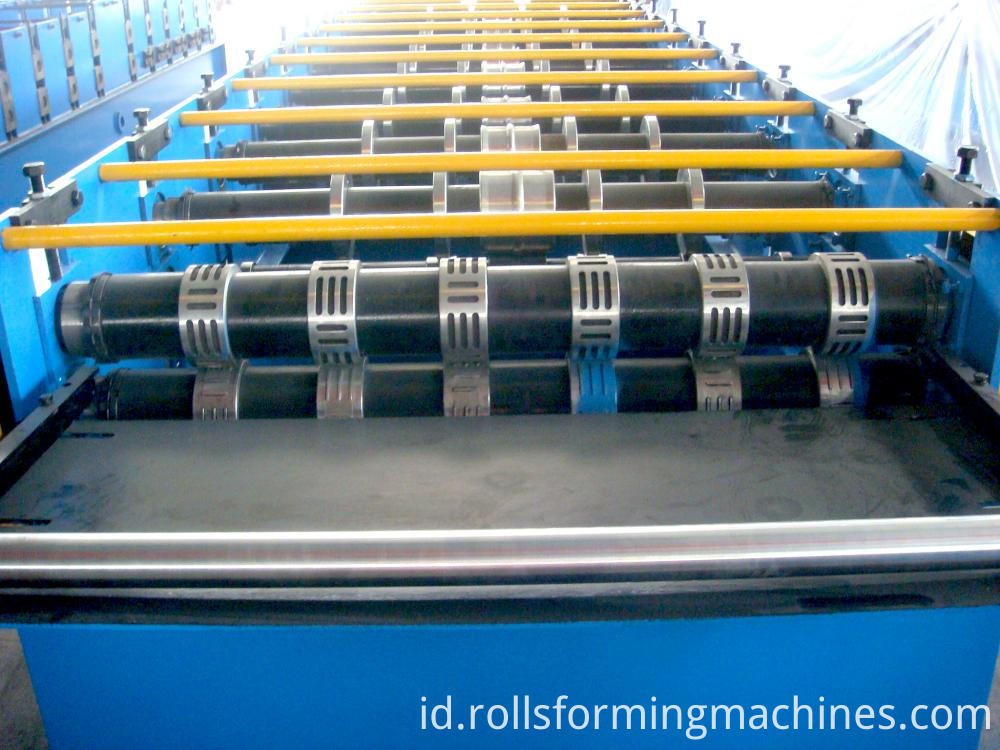

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working

Feature : Ensure stability , precision and lifetime.

roll forming

Length of the main part:14200*1300*1400mm

Weight of main part:About 14 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

feeding width:1000mm

Drive mode:chain

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

cutting:hydralic cutting

Number of rollers:30 rollers

Main power:15kw (Cycloidal planetary gear speed reducer)


Cutting device

Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.

Floor deck roll forming machine (21)

Our Services


1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

ings.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.


packing of Metal Floor Deck Machine:
package



Looking for ideal Metal Floor Deck Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Floor Deck Forming Machine are quality guaranteed. We are China Origin Factory of Cold Roll Forming Machines. If you have any question, please feel free to contact us.

Product Categories : Floor Deck Roll Forming Machine
