Metal Floor Deck Sheet Panel Roll Forming Machine
Metal Floor Deck Sheet Panel Roll Forming Machine
Metal Floor Deck Sheet Panel Roll Forming Machine
Metal Floor Deck Sheet Panel Roll Forming Machine
Metal Floor Deck Sheet Panel Roll Forming Machine

Metal Floor Deck Sheet Panel Roll Forming Machine

Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-012

    Type: Polished Tiles

    Size: 1000*1000mm

    Function: Waterproof, Wear-Resistant, Anti-Static

Additional Info

    Packaging: nude

    Productivity: 15m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce/iso9001

Product Description

Metal Floor Deck Sheet Panel Roll Forming Machine


Product description

The Metal Floor Deck Sheet Panel Roll Forming Machine adopts wallboard structure.It increases the strength of the machine.The finished product of this metal deck is widely used in floor flat.After making embossing on the steel,it increase the strength between the steel and concrete, thereby increasing the fastness of the floor.

Steel floor sheets of the Metal Floor Deck Sheet Panel Roll Forming Machine are new building materials with various thicknesses. They are used as the floors of buildings because of low cost, light weight but high strength, short building period, and re-cycle use.

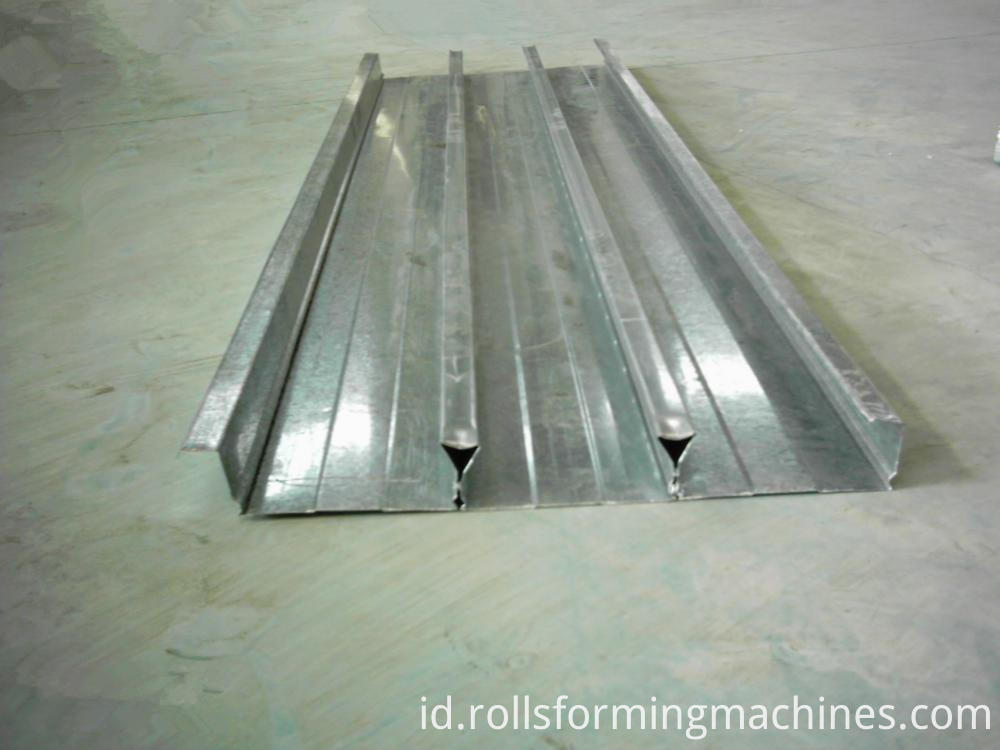

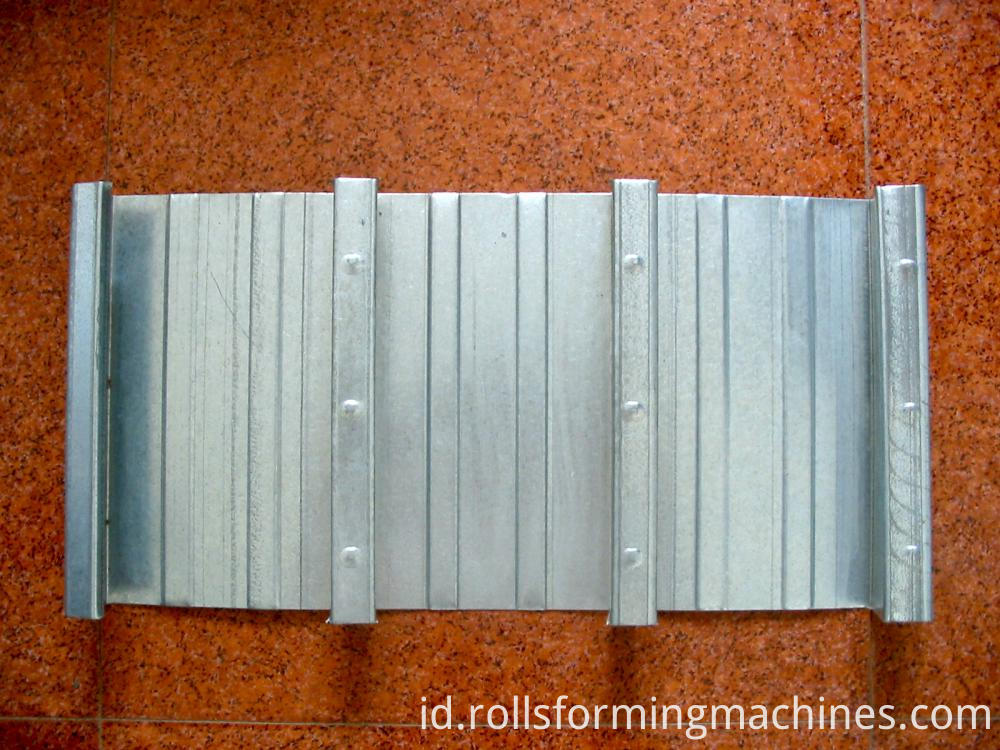

Drawings profile or finished product pictures

metal decking floor roll forming machinepanel roll forming machine

Specification of Metal Floor Deck Sheet Panel Roll Forming Machine

Material Type:GI/PPGI/AL

Material Width:1000/1200/1220/1250mm(customized)

Material Thickness:0.80-1.20mm

Sheet length:Any length

Length Tolerance:±2mm/6m

Working Speed:12-15 m/min (10 piece per min as 8 feet per piece,standard machine)

Control System:Mitsubishi/Siemens PLC& transducer(customized)

Total Power:About 15KW

Total Weight:About 14T(up to the final design)

Production process of Metal Floor Deck Sheet Panel Roll Forming Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting→Products receiving

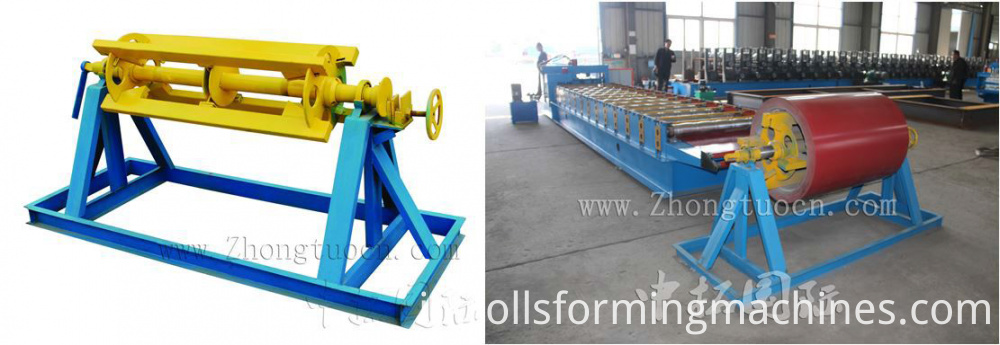

Un-coiler System of Metal Floor Deck Sheet Panel Roll Forming Machine

floor deck decoiler


Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system

Loading-capacity:5T

Uncoiling-width:1000/1200/1250mm

Inner-diameter: 450-550mm

Entry Beach

entry beach 1

Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

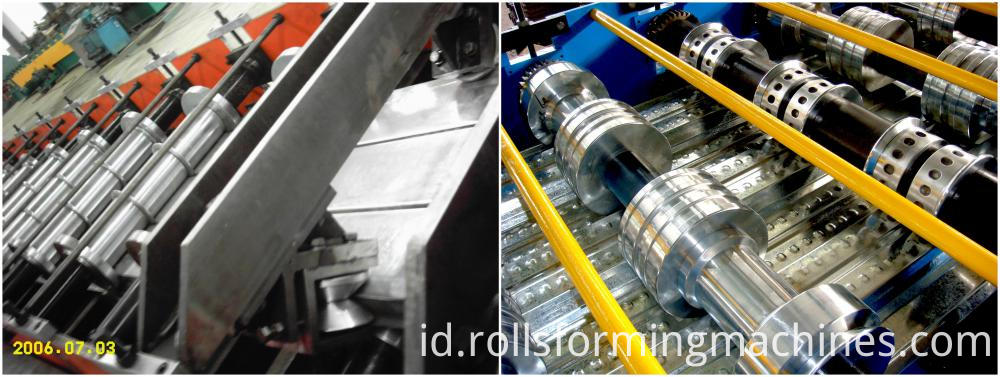

Main Roll forming machine

main roll forming 01

Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:14200*1300*1400mm

Voltage:380V/50HZ3Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 30 rollers

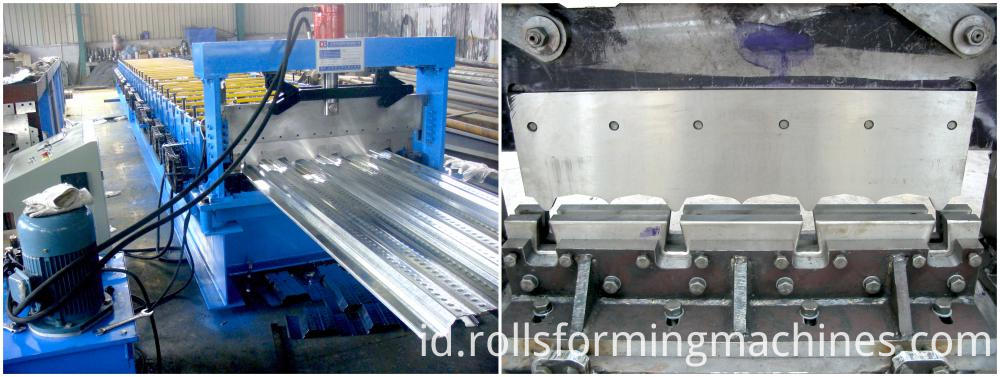

Shearing Mechanism

main roll forming 02

Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.


Feature : Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Products receiving tables

table


Looking for ideal Panel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Floor Deck Panel Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Floor Deck Sheet Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Floor Deck Roll Forming Machine
