Zhongtuo Roll Forming Machinery Co., ltd

High Rib Roofing Panel Roll Forming Machine
High Rib Roofing Panel Roll Forming Machine
High Rib Roofing Panel Roll Forming Machine
High Rib Roofing Panel Roll Forming Machine
High Rib Roofing Panel Roll Forming Machine

High Rib Roofing Panel Roll Forming Machine

Unit Price: USD 14500 - 19800 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-004-088

Additional Info

    Packaging: nude package

    Productivity: 25 set per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30 sets per month

    Certificate: CE ISO9001

Product Description

Glazed Steel Tile Roll Forming Machine/High Rib Roofing Panel Roll Forming Machine/Roof Panel Machine

Brief Introduction:

Glazed Steel Tile Roll Forming Machine is also called High Rib Roofing Panel Roll Forming Machine or Roof Panel Machine.It is widely used in factories, residential, hotels, villas and other industrial

and civil construction.Compared with other type roof panel machine, its appearance is much more beautiful.

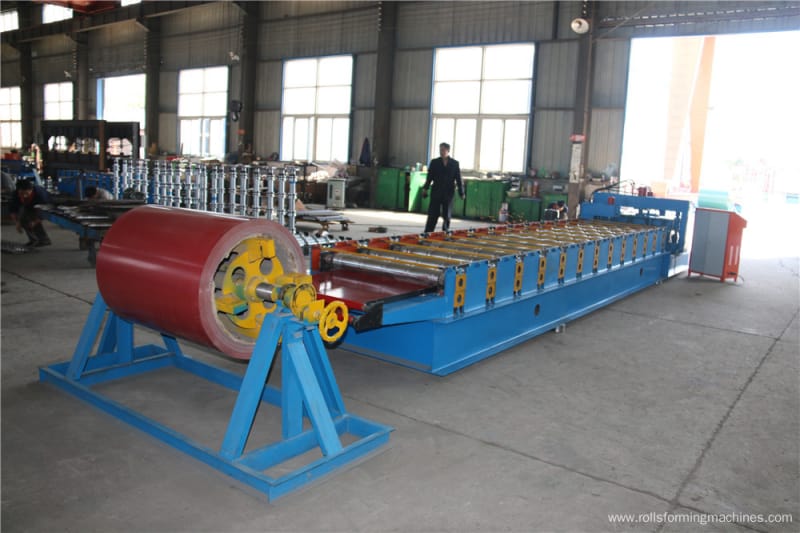

Photo of Glazed Steel Tile Roll Forming Machine for your reference:

glazed steel tile roll forming machine 02



Glazed Steel Tile Roll Forming Machine Working flow:

Uncoiler->feeding materials to machine->roll forming ->step formed->auto cutting ->product receiving table

glazed steel tile roll forming machine



Components of Glazed Steel Tile Roll Forming Machine


Manual Decoiler-----1 set


Main forming machine---1 set

PLC control system---1 set

Hydraulic oil pump ---1 set

Post cut---1 set

Electric motor---1 set

Product receiving table ---1 set

Main specification of Glazed Steel Tile Roll Forming Machine

Length of the main part: About 8500 х 1650 х 1500 mm

Weight of main partAbout 4.5 t

Voltage380 V/50 HZ 3 Phase (as customer`s request)

Roller fixer: Middle plate welded

Frame: 350 H steel welded

Frame thickness: 16 mm

Drive mode:chain

Material of rollers:45# steel, surface hard chromium plating

Material of shafts:45 # steel

Diameter of shafts: φ80 mm

Number of rollers: up layer:13 rollers

power: 5.5kw


Detailed pictures about Glazed Steel Tile Roll Forming Machine:

IMG_0777IMG_0803

IMG_0731IMG_0728

IMG_0816IMG_0810



Looking for ideal Glazed Steel Tile Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High Rib Roofing Panel Roll Forming are quality guaranteed. We are China Origin Factory of Glazed Steel Tile Roof Panel Machine. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Glazed Tile and Ridge Cap Roll Forming
