Zhongtuo Roll Forming Machinery Co., ltd

Good Configuration Single Layer Trapezoid Machine
Good Configuration Single Layer Trapezoid Machine
Good Configuration Single Layer Trapezoid Machine
Good Configuration Single Layer Trapezoid Machine
Good Configuration Single Layer Trapezoid Machine

Good Configuration Single Layer Trapezoid Machine

Unit Price: USD 18000 - 35000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-058

Additional Info

    Packaging: stander packing

    Productivity: 30 sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: CE ISO9001

Product Description

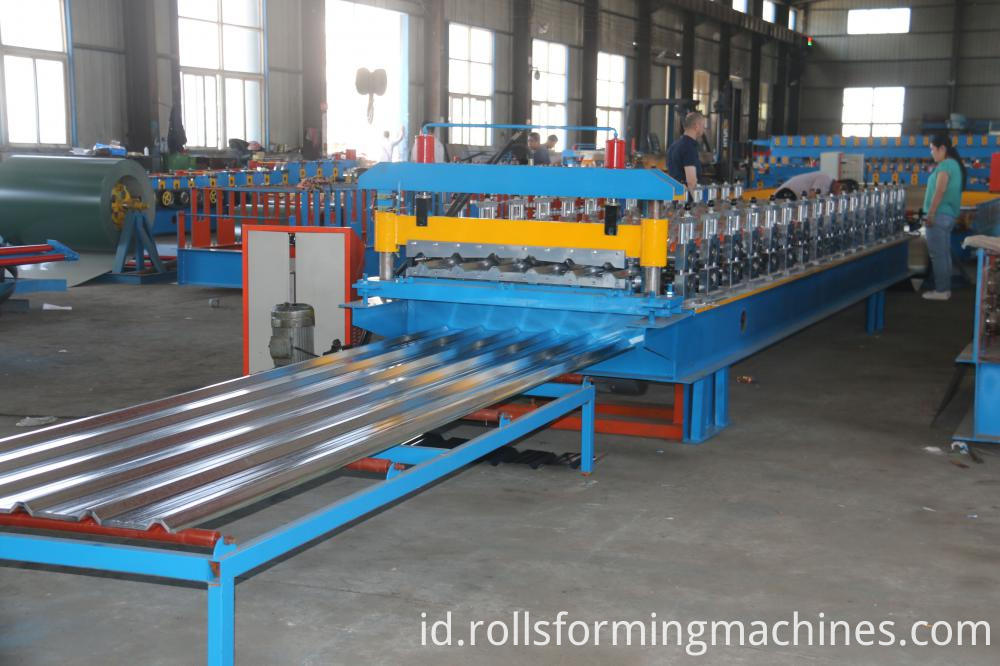

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine


Machine Description

Qty

Delivery time

Container Type

Price

FOB Tianjin

FX28-202-1010 Tile Forming Machine

1 SET

40 working days

after receiving deposit

One 40 GP

32000 USD







Drawings profile:

Good Configuration High Quality Single Layer Trapezoid Roll Forming Machine


Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting

→Products receiving

flow of the c z channel roll forming machine



Components of production line

No.

Name

Unit

Qty

1

Hydraulic decoiler for 5 tons

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1


Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.25-0.60 mm

Material hardness: 245 mpa---350 mpa

Material width: 1220 mm

Formed width:1010 mm

Wave length: 202 mm

Wave height: 28 mm

Forming speed: 15 m/min

Un-coiler System

Usage:Hydraulic expanding and being inwards tight during feeding.

Automatically feeding driven by electric motor

Trapezoid Roll Forming Machine


Main parameter

Coil inner diameter

450-550 mm

Max coil out diameter

1300 -1600 mm

Max coil width

1250 mm

Carrying capacity

5 Tons

Hydraulic power

3 kw

Drive power

3 kw

Size

2.7*1.3*1.8 m(L*W*H)






Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the

products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the

function of locate angle iron.

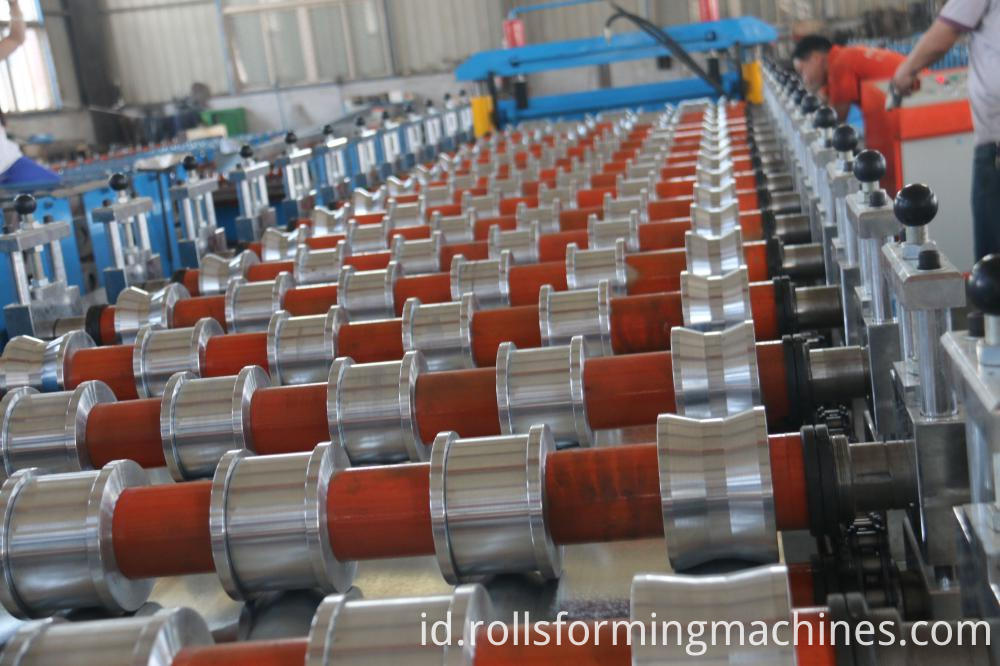

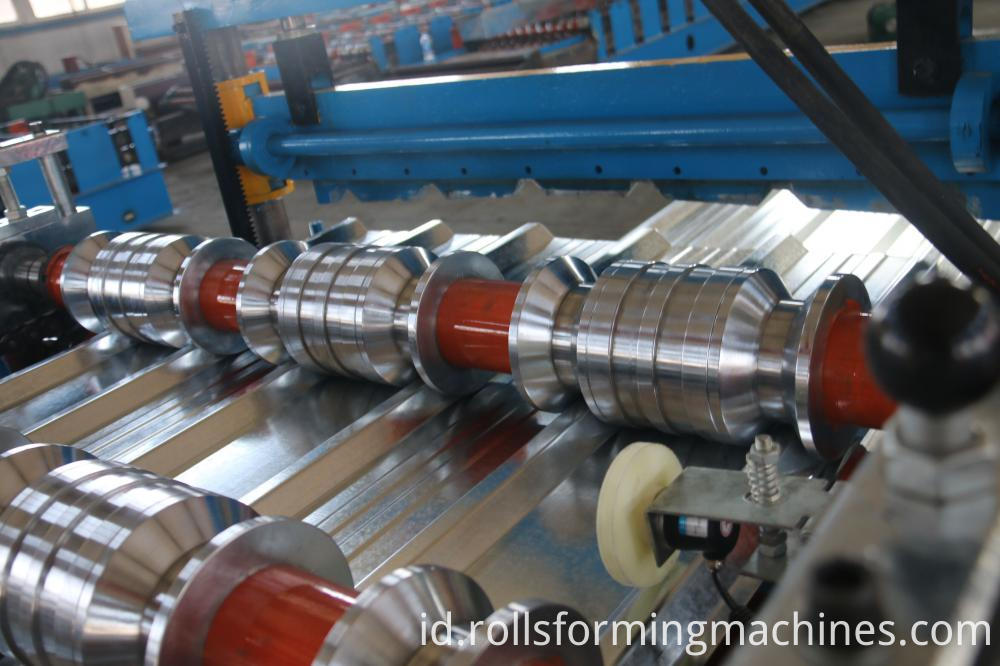

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked

when it is working

Feature : Ensure stability , precision and lifetime.

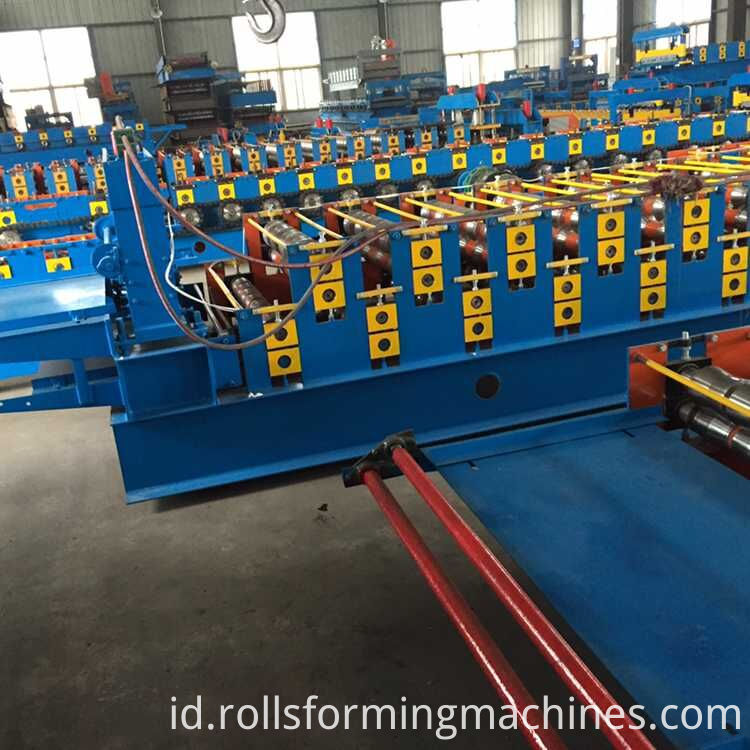

High Quality Single Layer Trapezoid Roll Forming Machine


No.

Main parameter

1

Length of the main part

8500 * 1450 * 1450 mm

2

Weight of main part

5.5 t

3

Voltage

380 V/ 50 HZ 3 Phase (as customer`s request)

4

Roller fixer

Pillar type

5

Frame

Guide pillar and the thickness is 50 mm

6

Frame thickness

25 mm

7

Drive mode

Gear

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ 80 mm Solid shafts

11

Number of rollers

15 rollers

14

Main power

5.5 kw

15

AC motors

Either ABB or Siemens

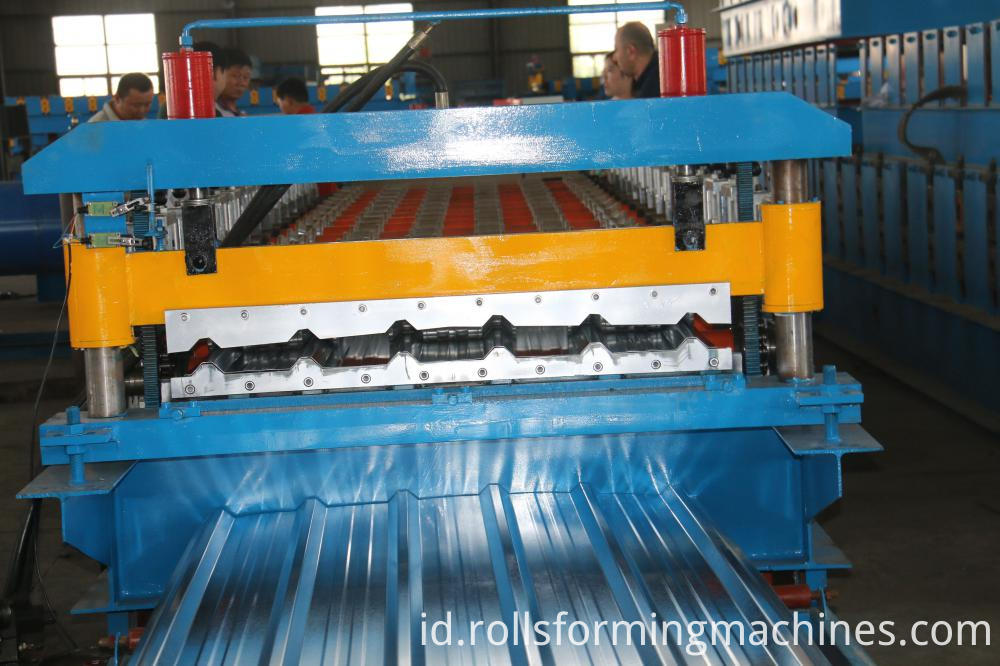

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.(include cutting tools, hydraulic tank, cutter machine)


Blade Material

Cutting system

Cr12 quenched

Full automatic


Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

High Quality Single Layer Trapezoid Roll Forming Machine


Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m*2 (normally for the air cylinder, we provide a famous Chinese brand,but if you want the Festo or SMC, we also can provide, but the price will change)

High Quality Single Layer Trapezoid Roll Forming Machine
