Zhongtuo Roll Forming Machinery Co., ltd

Roofing metal Steel Sheet Roll Forming Mahcine
Roofing metal Steel Sheet Roll Forming Mahcine
Roofing metal Steel Sheet Roll Forming Mahcine
Roofing metal Steel Sheet Roll Forming Mahcine
Roofing metal Steel Sheet Roll Forming Mahcine

Roofing metal Steel Sheet Roll Forming Mahcine

Unit Price: USD 25000 - 6500 / Bag/Bags
Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
Min. Order: 1
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-003-50

Additional Info

    Packaging: nude packing

    Productivity: 30 Sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: china

    Supply Ability: 30 sets per month

    Certificate: CE ISO9001

Product Description

Roofing metal steel sheet

roll forming mahcine


Description of products :


trapezoidal roof tile Roll Forming Machine production process

decoiling-guiding-roll forming-cutting-products


Production process:

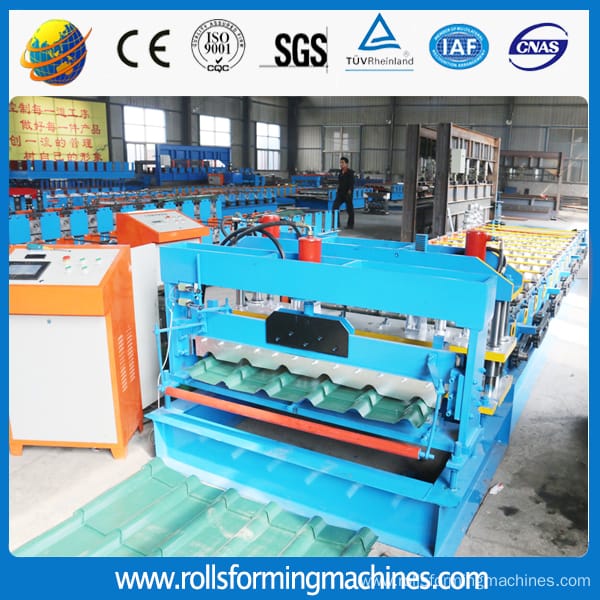

Color Steel Glazed Tile Making Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving



details of trapezoidal tile roll forming machine


Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness:0.3- 0.8mm

Material hardness:195 mpa---350 mpa

Material width:1250mm Wave length:194 mm

Formed width: 970 mm Step height: 30 mm

Step length:150mm---380mm(adjustable) Forming speed:4 m/min

No.

Main parameter

1

Length of the main part

7500*1650*1500mm

2

Weight of main part

4.5T

3

Voltage

380V/50HZ3Phase(as customer`s request)

4

Roller fixer

Midddle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

chain

8

Material of rollers

45#steel, surface hard chromium plating

9

Material of shafts

45#steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

13rollers

12

Main power

5.5kw



Glazed tile roll forming machine (19)

Packing and shiping:

Packaging Details:

1. one 20ft container for loading one set machine with Manual Decoiler;

2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in plastic tooling box;

4. All Components Fixed by steel wire with Container.

Delivery Detail: 45 days after receipt of buyer's deposit

9

Service


a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company information

factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards

and are greatly appreciated in variety of different markets throughout the world, such

as Asia, Africa, Europe,South America, and Australia and so on.

company information

Looking for ideal Trapezoid Steel Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Trapezoid Steel Roof Forming Machine are quality guaranteed. We are China Origin Factory of Roofing Sheet Machines. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Glazed Tile and Ridge Cap Roll Forming
