Zhongtuo Roll Forming Machinery Co., ltd

Steel Slitting Machine/Automatic Slitter Machine
Steel Slitting Machine/Automatic Slitter Machine
Steel Slitting Machine/Automatic Slitter Machine
Steel Slitting Machine/Automatic Slitter Machine
Steel Slitting Machine/Automatic Slitter Machine

Steel Slitting Machine/Automatic Slitter Machine

Unit Price: USD 6000 - 80000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-010

Additional Info

    Packaging: nude

    Productivity: 15m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce,iso9001

Product Description

Steel Slitting Machine/Steel Coil Automatic Slitting Machine-for construction material

General introduction about Steel Slitting Machine

Steel Slitting Machine is also called Slitting Line Machine.Slitting line machine can do uncoiling, slitting and recoiling works, make coil steel to any desired width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, Etc. It mainly used in cold or hot rolled, galvanized iron,PPGI,stainless steel,carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.This line can be adjusted to do recoiling or dividing work to meet customer`s demand.


Features of Steel Slitting Machine

1.tidy recoiling

2.convenient to operate

3.accurate precision of shearing

4. professional design and good to use


Parameter of steel Slitting Machine

Raw material: steel
Thickness: 0.5--2.5mm
Width: 900-1250mm
Inner diameter: 508mmmm
Max out diameter: 1600mm
Max weight: 6T

Width tolerance: 0.5mm

Min slitting width: 60mm

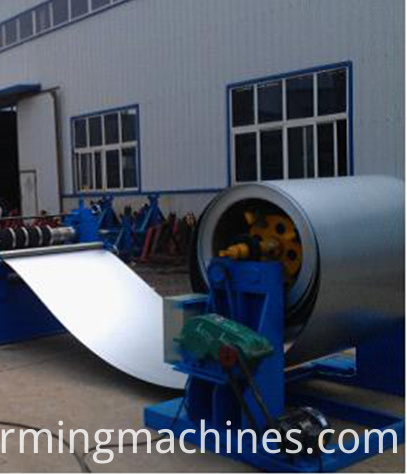

decoiling

Decoiler

Max coil weight: 5 T

Inner diameter: 508mm

Max out diameter: 1200mm

Hydraulic station power: 4Kw

Decoiler speed: 0-20m/min

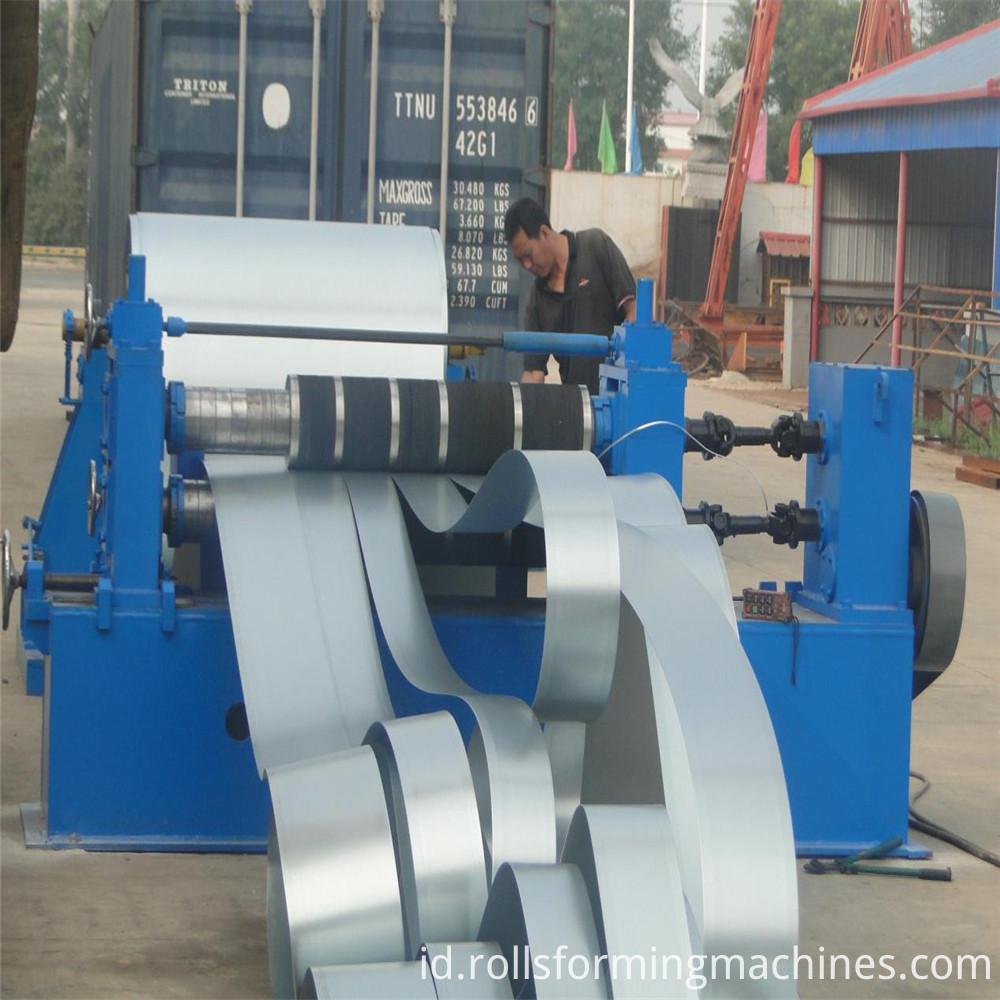

slitting machine02

Slitting device

Slitting speed: 0-15mm/min

Driving motor: 11 Kw

Slitting shaft diameter: Ф120mm

Shearing blade: 12 pieces

Max slitting pieces: 10 pieces

Min slitting width: 60mm

Shearing blade material: 12CrMoV

Pinching roller: 2 couples

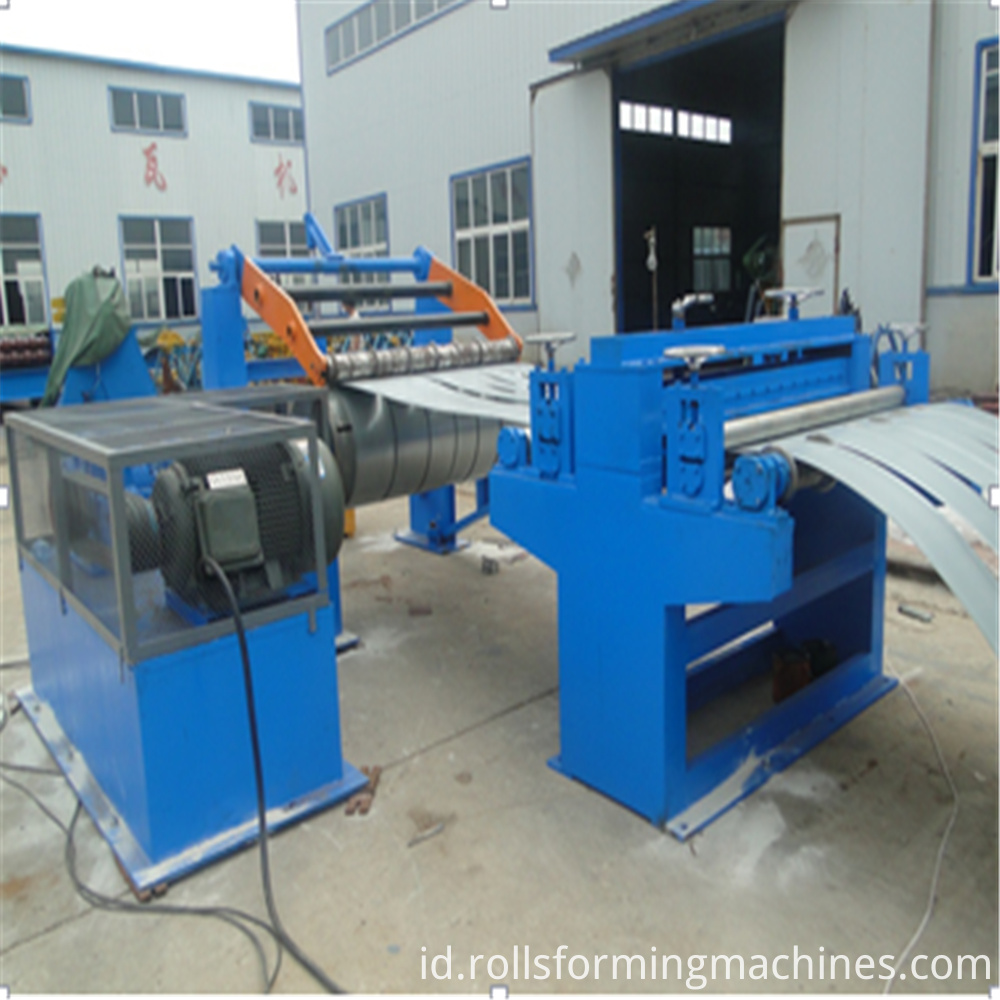

slitting machine04

Recoiler

Max coil weight: 5 T

Inner diameter: 508/610mm

Max out diameter: 1500mm

Recoiler motor: 15kw

Hydraulic station power: 4kw

Recoiler speed: 0-15m/min

Motor: 35kw

Voltage: 380V/3ph/50Hz

Weight: 14000kg(the exactly weight depend on the machine)

Size: 15 * 4 *1.8 m

Electrical control system

a. The Brand of display: adopting 5.7 inch Tai Da DVP14ES

b. The main computer (PLC):adopting ENC-1-1-1t-24 of North KoreaHydraulic system.

a. Taiwan hydraulic system

b. Motor:3KW

Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power:3KW










Looking for ideal Steel Slitting Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Slitter Machine Steel Slitting Machine are quality guaranteed. We are China Origin Factory of Steel Slitting Line Machine. If you have any question, please feel free to contact us.
